High-Availability Infrastructure Platform

Built the production backbone for five internal services: 3× lower cost, new service live in hours instead of days, and 99.9%+ availability across the board.

3×lower infrastructure cost
99.9%+system availability
Hoursto launch a new service
5+products on one platform
The Problem

A growing product ecosystem needed a real platform

Five internal services were running on scattered servers with manual deploys. Cloud costs were high and growing with each new product. Reliability was unpredictable — a single server issue could take down multiple products.

Adding a new service required 2–3 days of server setup, manual configuration, and individual sysadmin involvement. The team needed infrastructure that could serve as a scalable foundation, not a series of one-off servers.

The Solution

A full production-grade platform built around GitOps

Load distribution layer

  • HAProxy for request routing and load balancing
  • Keepalived for virtual IP failover and high availability

Data layer

  • PostgreSQL with Patroni — automatic leader election and HA cluster
  • Redis for caching and pub/sub messaging

Application layer

  • Kubernetes for container orchestration and scaling
  • CI/CD pipelines + ArgoCD for GitOps-based deployment

Observability

  • Grafana dashboards for real-time system monitoring
  • Automated daily backups for all databases
In Action

Screenshots

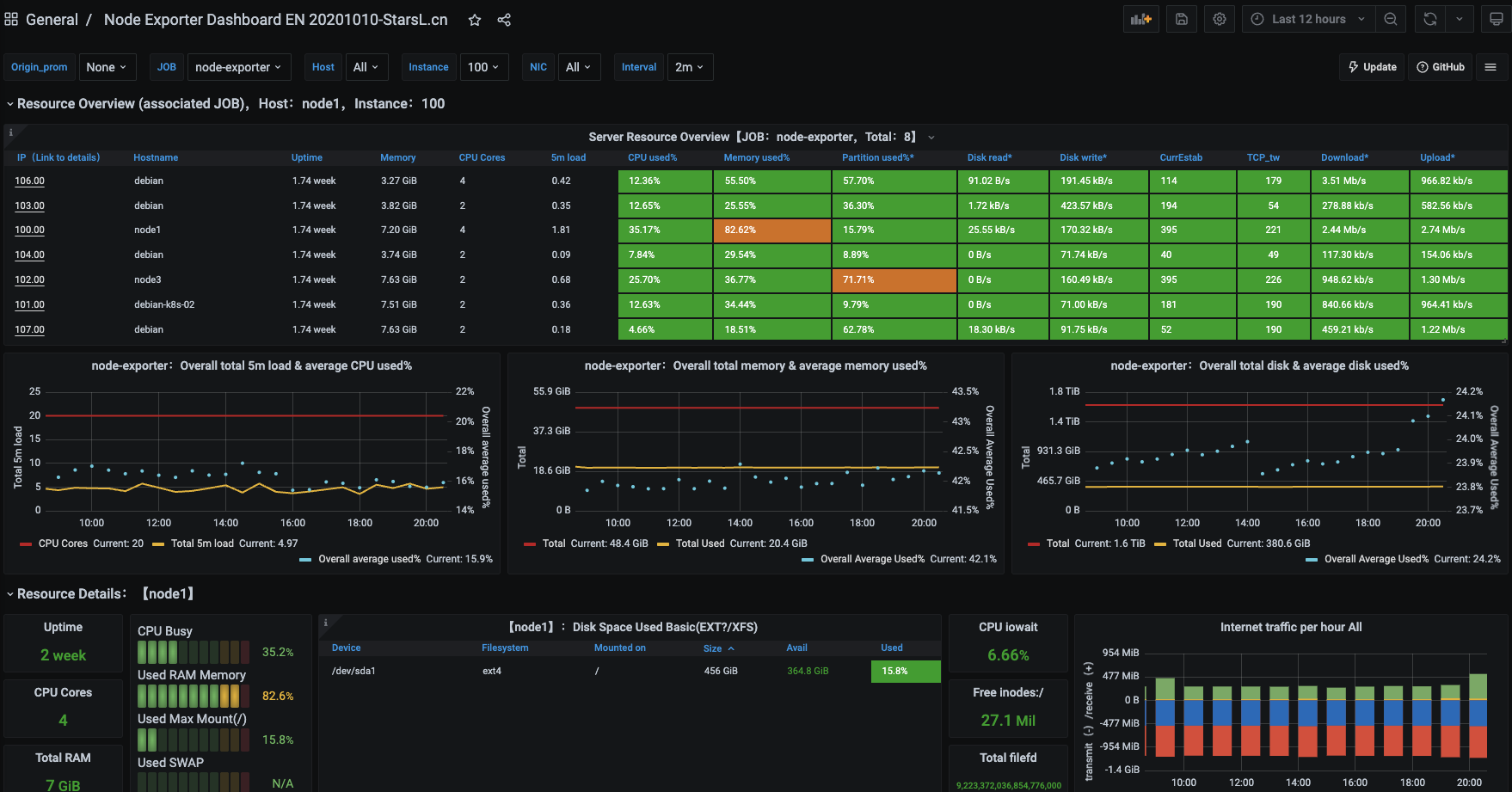

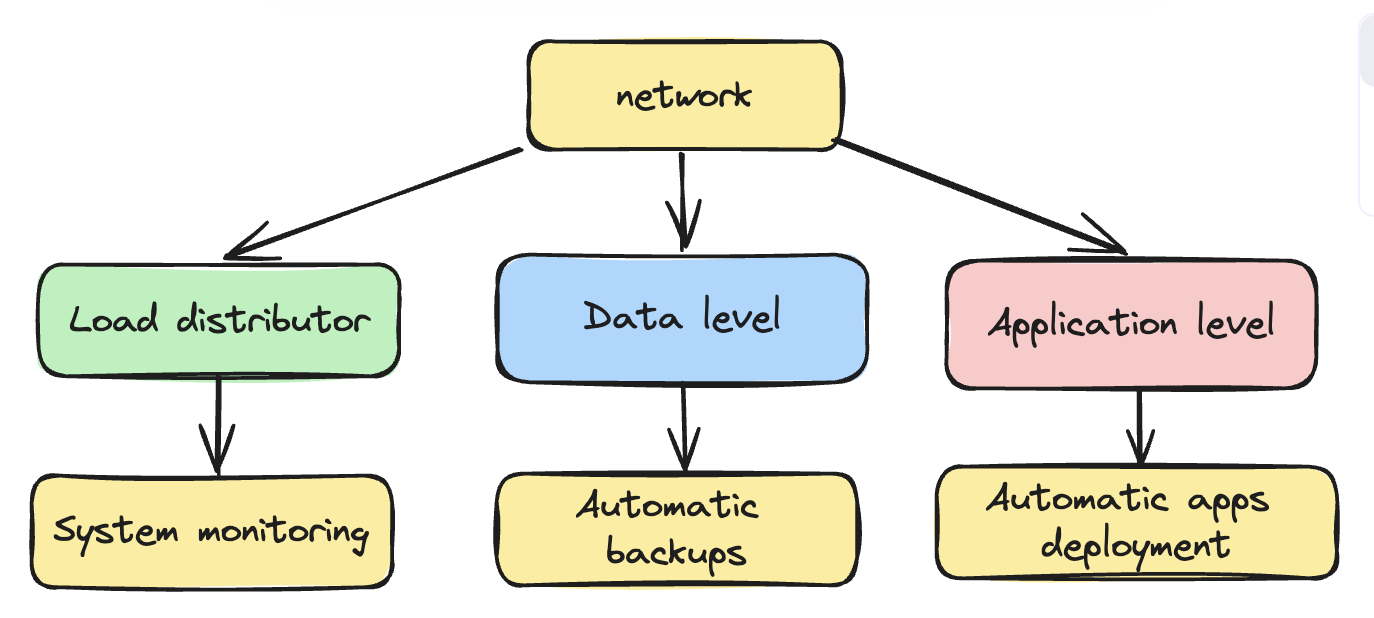

Infrastructure architecture diagram — load distributor, data level, application level Grafana monitoring dashboard — CPU, memory, disk, and network metrics ArgoCD — GitOps deployment sync status across all services
Results

What the platform delivered

Infrastructure costs cut by 3× — migrated from cloud to owned servers, eliminating egress fees and per-resource billing.
New service deployment time went from 2–3 days of manual setup to a few hours via ArgoCD and Kubernetes manifests.
System availability consistently above 99.9% — HAProxy + Keepalived failover eliminates single points of failure.
Development team deploys changes independently using GitOps — no dedicated sysadmin involvement required for routine deployments.
All five internal products (bots, planner, drive, website) run on one unified, observable platform.
Platform continues to grow — adding new services is now a configuration task, not an infrastructure project.
Tech Stack
Kubernetes ArgoCD HAProxy Keepalived PostgreSQL Patroni Redis Grafana GitHub Actions Docker Kustomize
